THE EASIEST, SAFEST AND LONGEST ENDURANCE HYBRID MULTIROTOR ON THE MARKET



The Perimeter 8 UAV features an impressive 22 lb. / 10 kg payload capacity with 1 to 2.5 hours of endurance and a no-payload endurance of over 6 hours. The Perimeter 8 is just as easy to operate as the Perimeter 4, but has propeller, motor, and ESC redundancy. In addition to electronic fuel injection and a 5 minute battery backup reserve flight time, this redundancy ensures the safety of high-value payloads.

5+ HOURS

Flight Endurance

22 LB (10 KG)

Payload Capacity

100 KM / 60 MILES*

Video and Control Range

< 5 MINUTES

Setup time

*Available only on certain sub-models.

Performance

Perimeter 8+
Perimeter 8
Max. Endurance * 5+ hours @ no payload
3 hours @ 11 lb. (5 kg)
2 hours @ 17 lb. (7.5 kg)
1 hours @ 22 lb. (10 kg)		 5 hours @ no payload
3 hours @ 8.8 lb. (4 kg)
2 hours @ 11 lb. (5 kg)
1 hours @ 17 lb. (7.5 kg)
Max. Payload Capacity 22 lb. (10 kg) for 1 hour.

* Can do 2.5 hours, but
MTOW will exceed 25 kg.

 17 lb. (7.5 kg) for 1 hour
Max. Range
(at cruise speed)		 134 miles (216 km) 110 miles (177 km)
Max. Temperature 122°F (50°C) 113°F (45°C)
Max. Density Altitude 13,000 ft (4,000 m) 9,000 ft (2,700 m)
Abs. Max. Speed 44 mph (70 km/hr) 36 mph (57 km/hr)
Cruise Ground Speed 22 mph (35 km/hr) 22 mph (35 km/hr)
Max. Tested Wind Speeds 25 mph+ (35 km/hr) 25 mph+ (35 km/hr)
Min. Temperature 15°F (-10°C) 15°F (-10°C)
Size
Tip-to-Tip length Arms removed: 2 feet x 2.66 feet (0.6 m x 0.81 m)
Ready to fly: 6.5 feet x 6.25 feet (2 m x 1.9 m)
Minimum Height 14.5” (0.37 m)
Height Customizable to fit payload
Maximum Takeoff Weight 56 lb. (25.5 kg) for Perimeter 8+
51 lb. (23 kg) for Perimeter 8
Controls and Communication
Radio Frequency Configurable. Contact us.
Maximum Telemetry
Distance		 6.2 miles (10 km) up to 62 miles (100 km)
Flight Modes

Manual through remote controller
– Stabilize
– Altitude (barometer- and GPS-based)
– Position (GPS-based)

GPS-based waypoint autonomy
– Survey
– Waypoint navigation and payload control
– Automatic land and takeoff
Radio Telemetry Link Encryption AES128 by default up to AES256.
Electronics, software and firmware
Autopilot Firmware Janus Autopilot™. Proprietary. PX4-based.
Engine Control Firmware and
Electronics		 Proprietary.
Autopilot Electronics Proprietary. Pixhawk-based.
Ground Control Station
Ground Control Software Janus Ground Control Station™ (jGCS). Proprietary.
QGroundControl-based with engine telemetry and control.
Power System
System Windows 10 Laptop
Fuel Delivery G2K proprietary hybrid gasoline-electric propulsion system
Ground Control Hardware Electronic Fuel Injection
Electrical Conversion Efficiency > 95%
Battery Flight Time 3-5 minutes maximum at 51 lb (23 kg) takeoff weight.
(can increase by request)
Battery Type Lithium Polymer
Gasoline/Petrol Type 91 Octane or above

* Flight times were measured at MSL 0’ in 50-75°F temperatures. Actual flight times depend on temperature, altitude,
wind and other environmental conditions.

** Tested operating conditions. Actual range may be greater.

Specifications are subject to change without notice.



PATENT MARKINGS

  • Flight controller for a series-hybrid multirotor aircraft – March 25, 2015 – Provisional application No. 62/137 ,915
  • Flight controller with generator control – December 4, 2018 – 10, 144, 527
  • Flight controller with generator control – February 21, 2019 – 2019 / 0055029
Engine Autostart Engine is automatically started and stopped. No pull starts or cumbersome drill starter motors.
Quick Deployment The Perimeter can be unboxed, assembled and flown in less than 5 minutes.

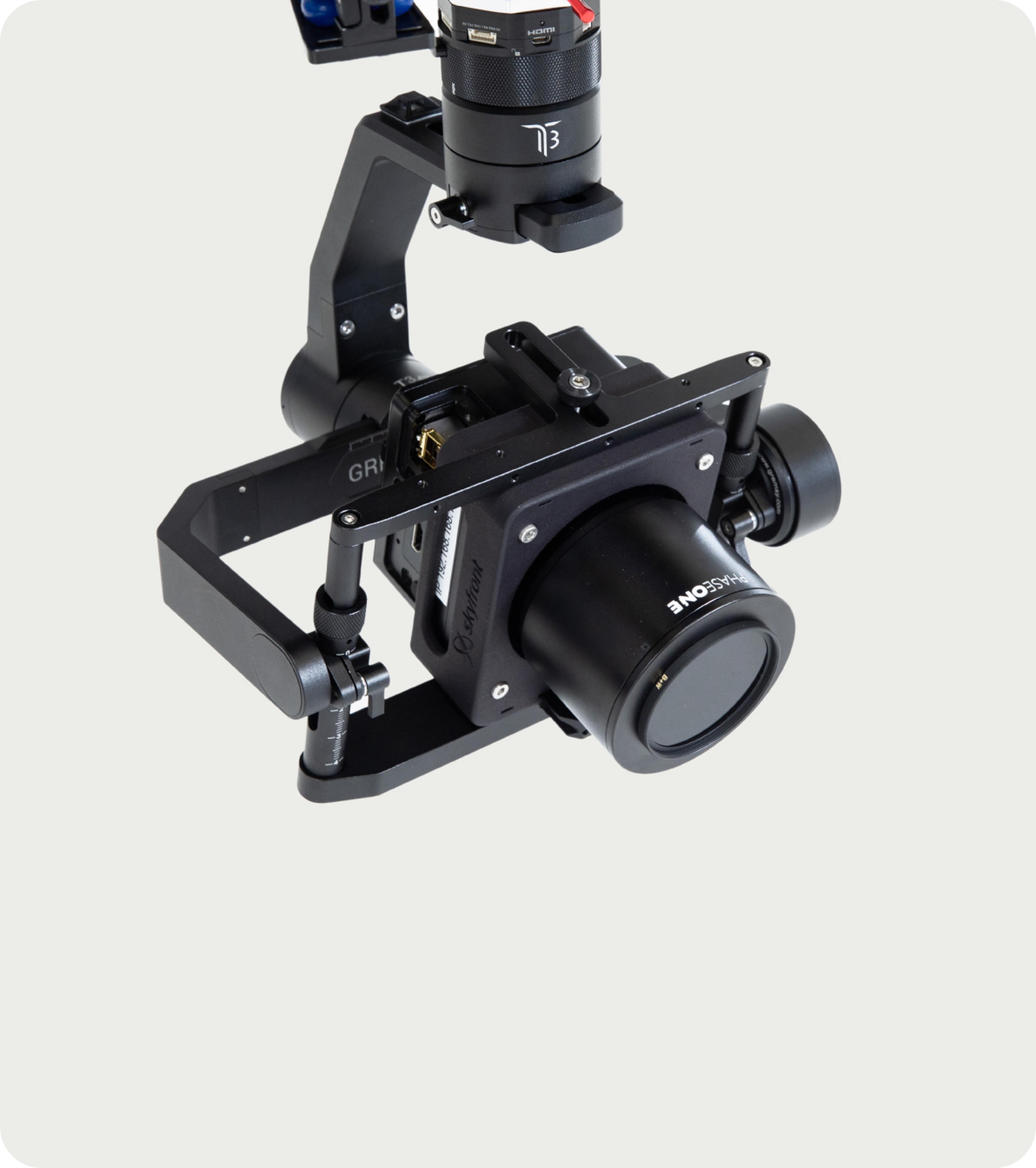

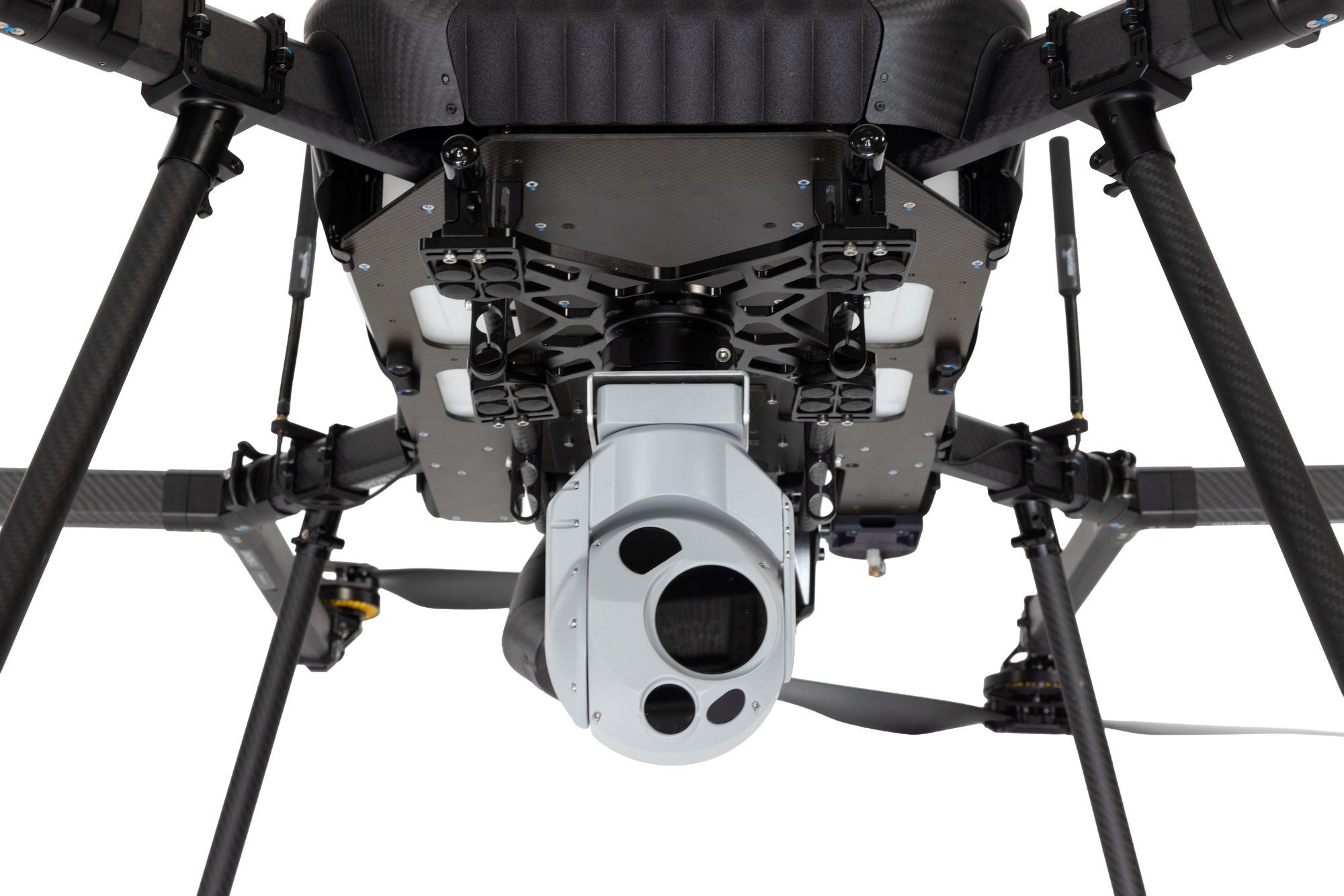

Modular Payload Bay The Perimeter is designed to accommodate payloads more than 11 lb. (5 kg) with form factors ranging from LiDAR units, visual and thermal cameras and more.
Seamless Engine Integration Engine operation is fully automated, from start to finish. Just refuel and fly like a regular multirotor.
Full Engine Telemetry and Control Engine health information is made available on the ground station. The engine can be started and stopped through the ground station.
Extremely Lightweight The Perimeter is 20% lighter than any hybrid-electric multirotor on the market today.
Visible Fuel Levels Visible fuel tanks provide quick fuel readings.
Digital Fuel Level Indicator Fuel levels are visible on the ground station.

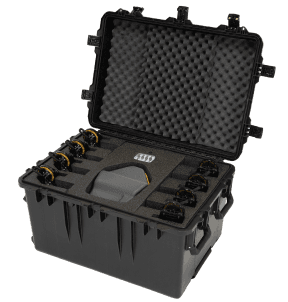

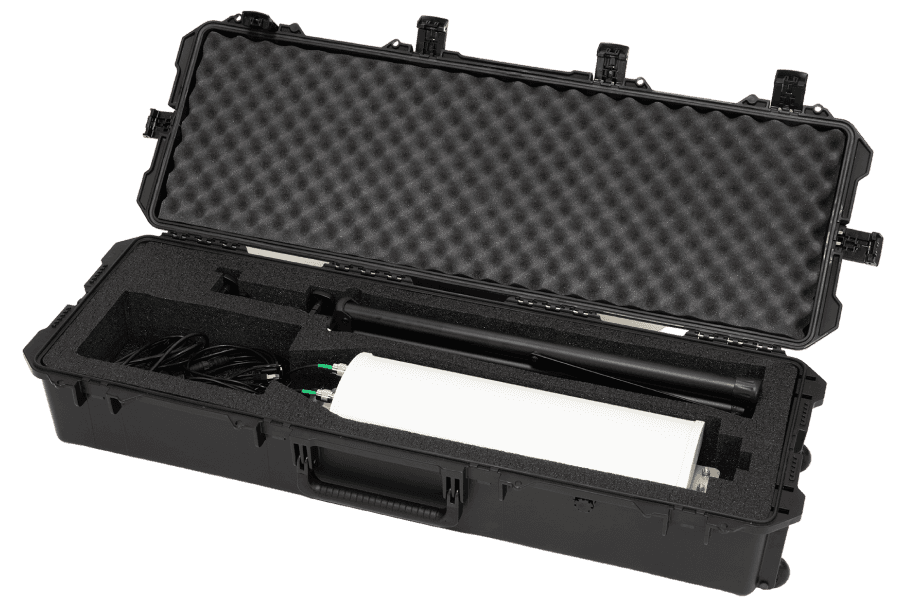

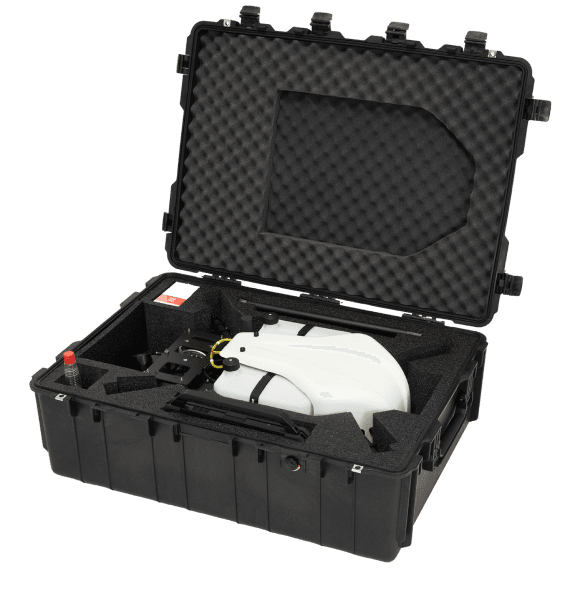

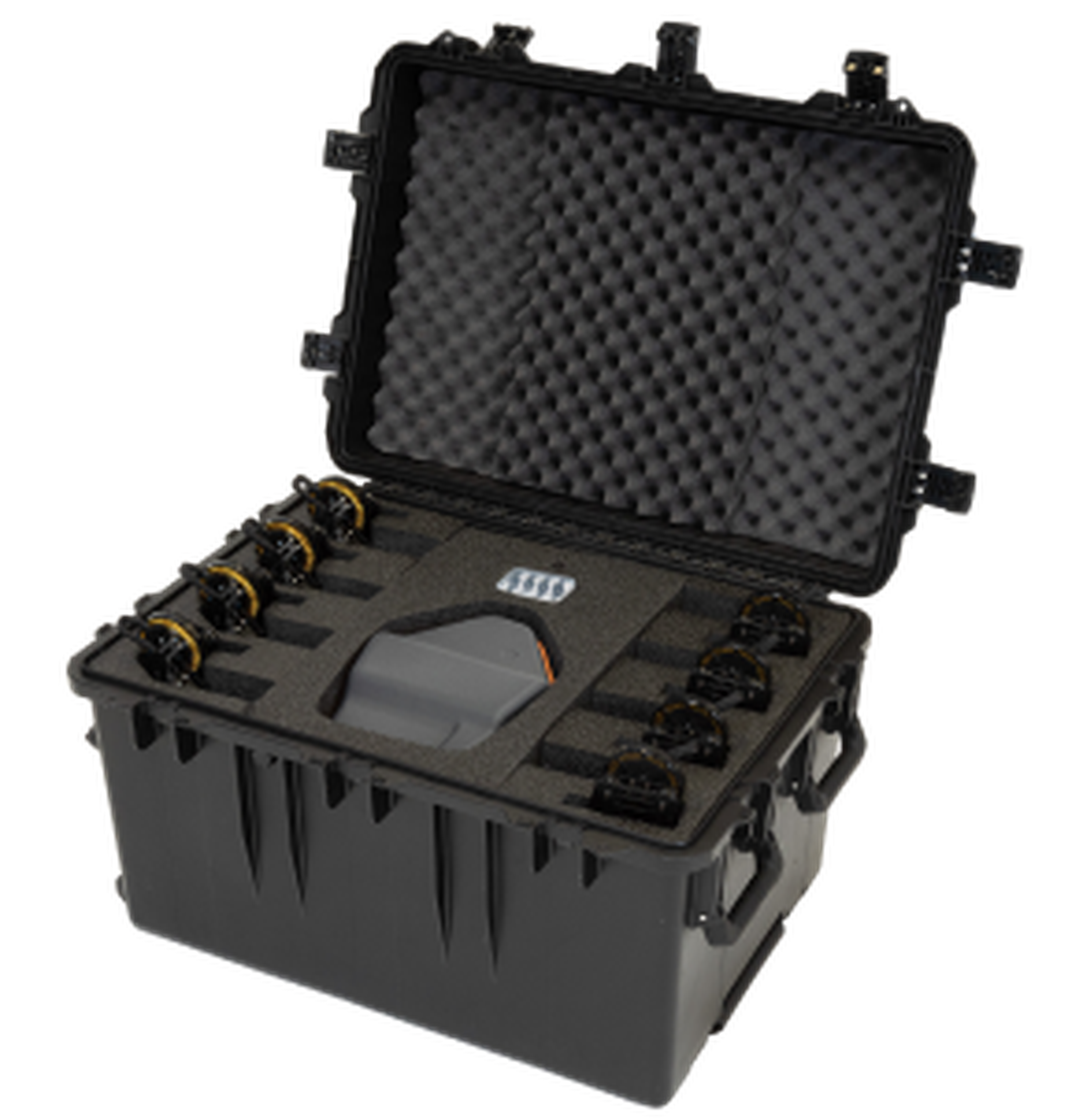

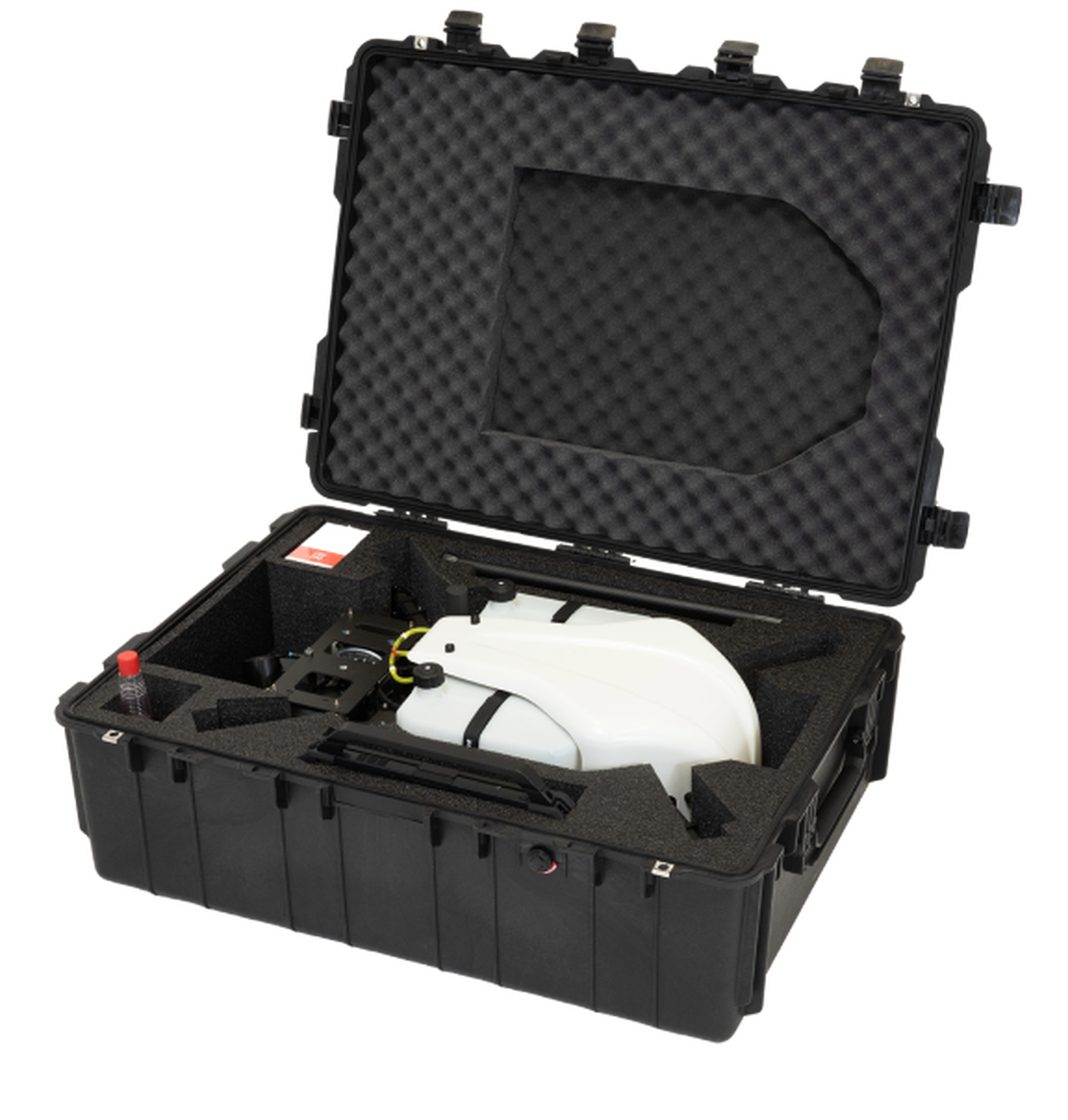

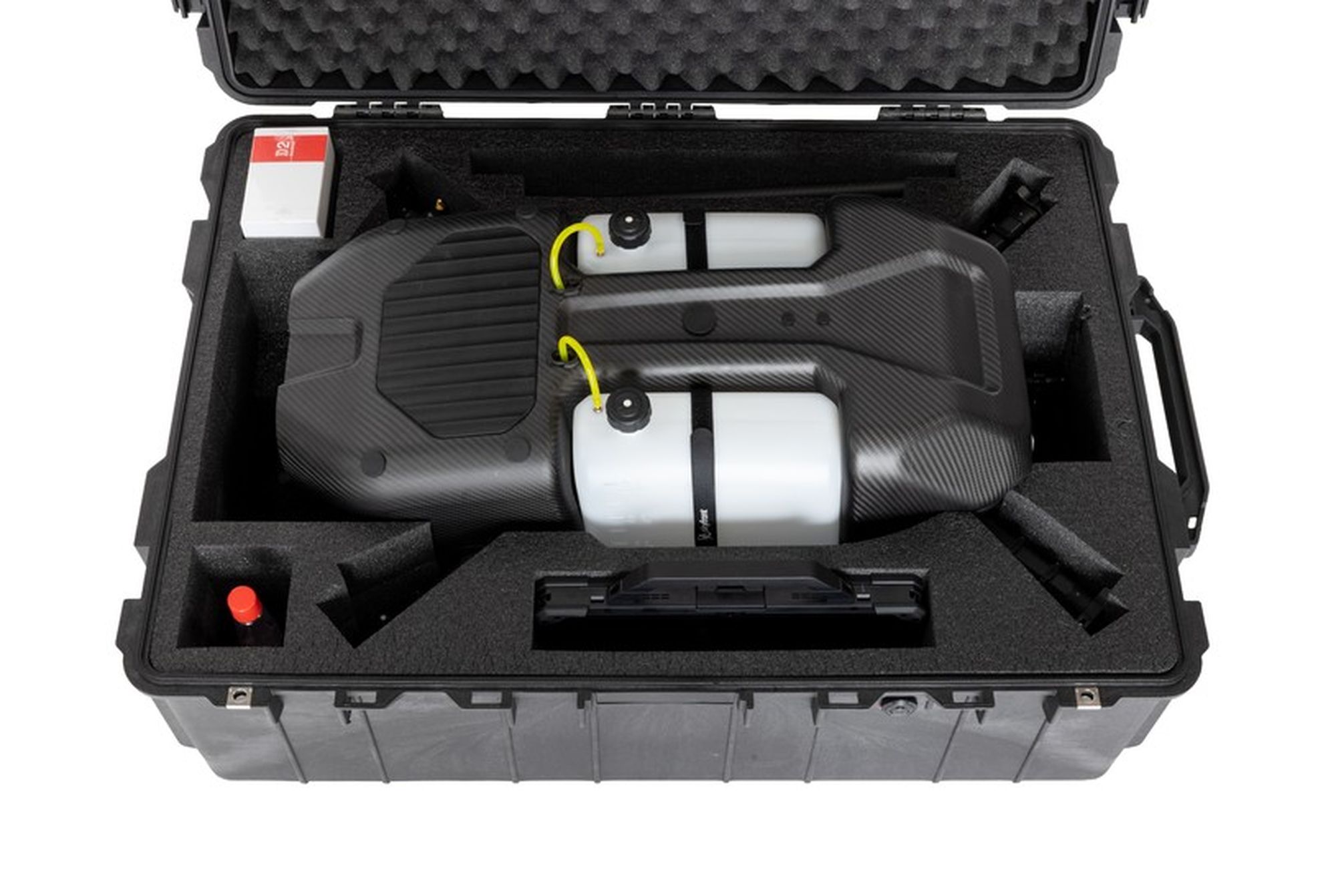

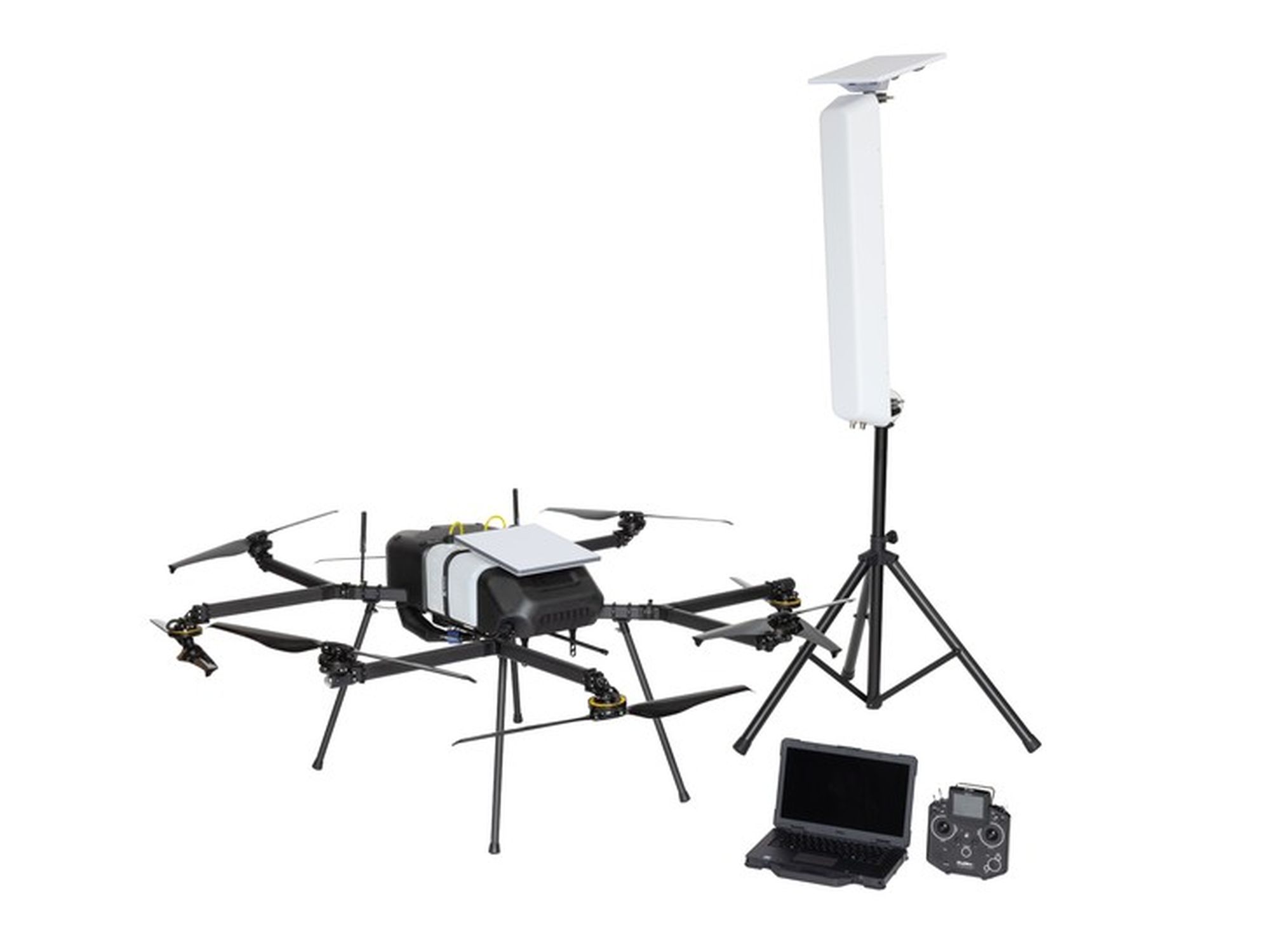

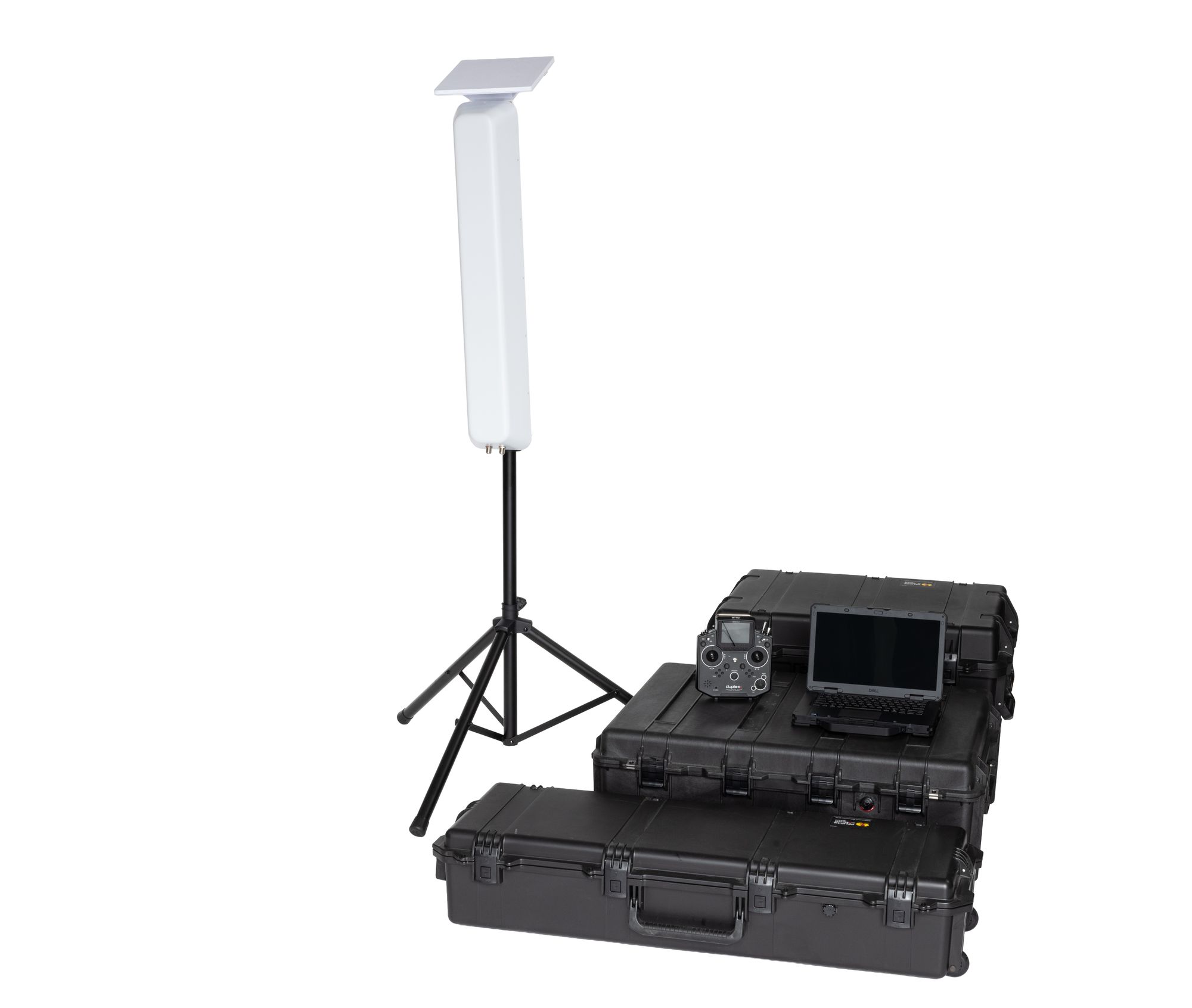

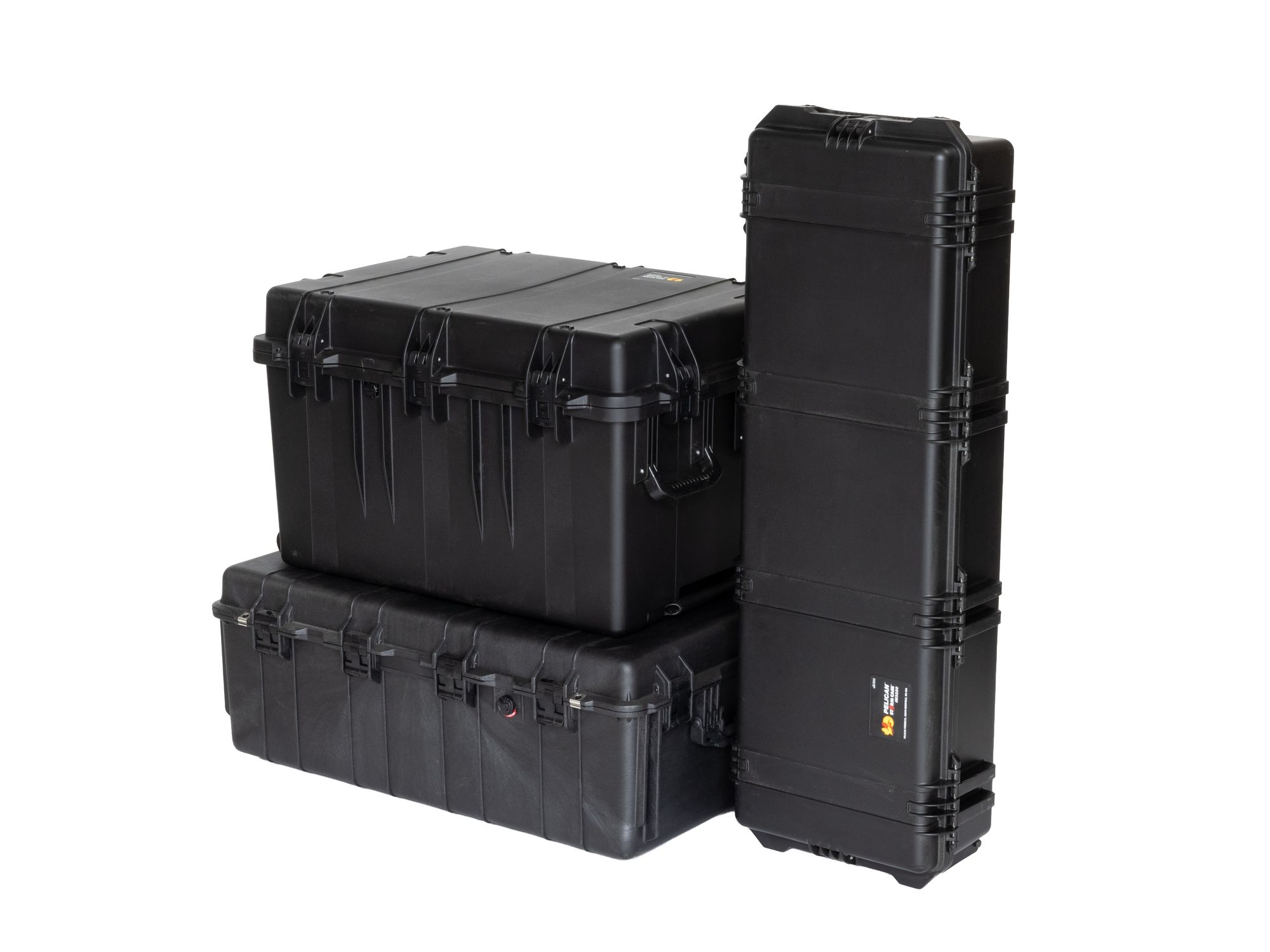

Skyfront Perimeter 8 Hybrid Electric Drone Package

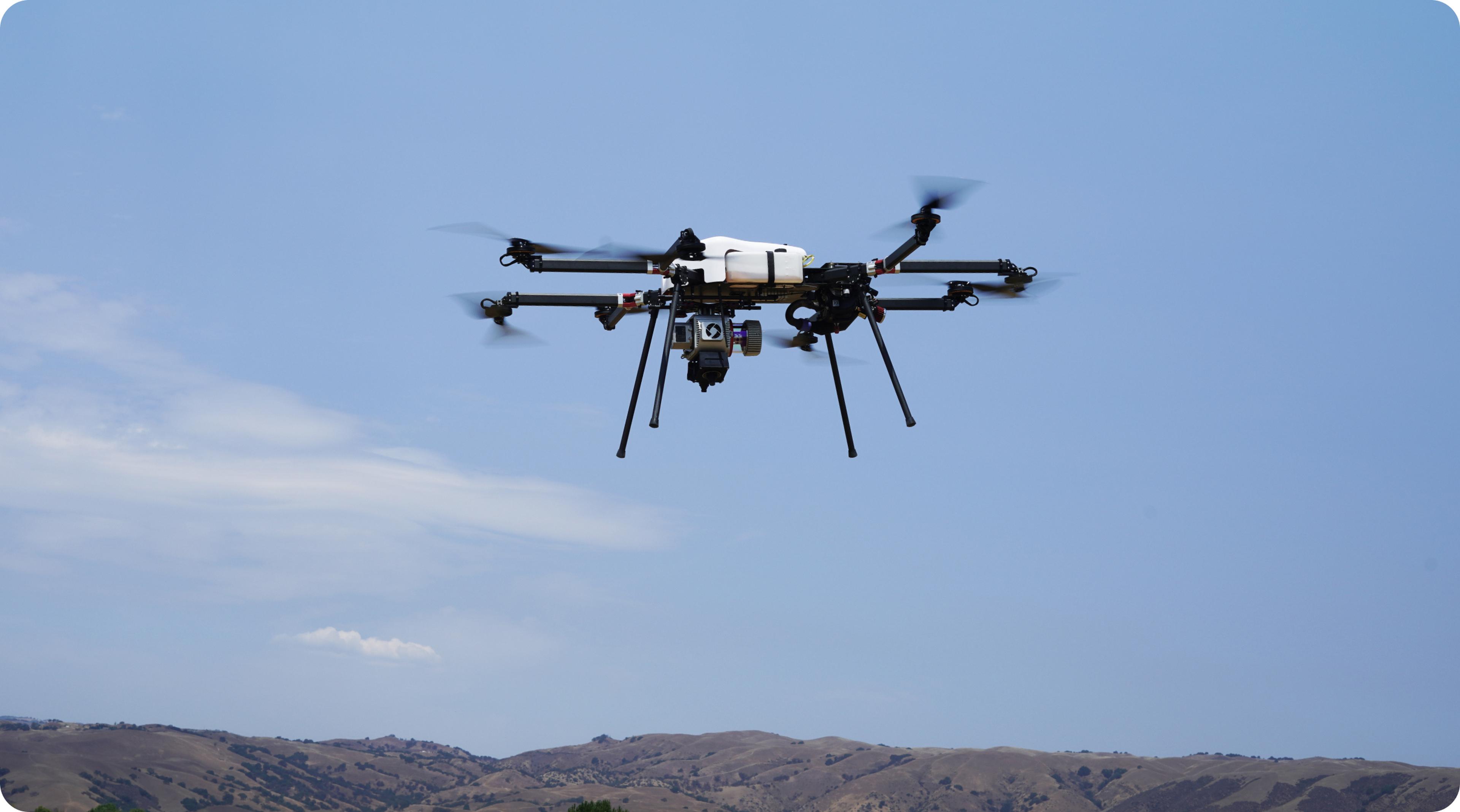

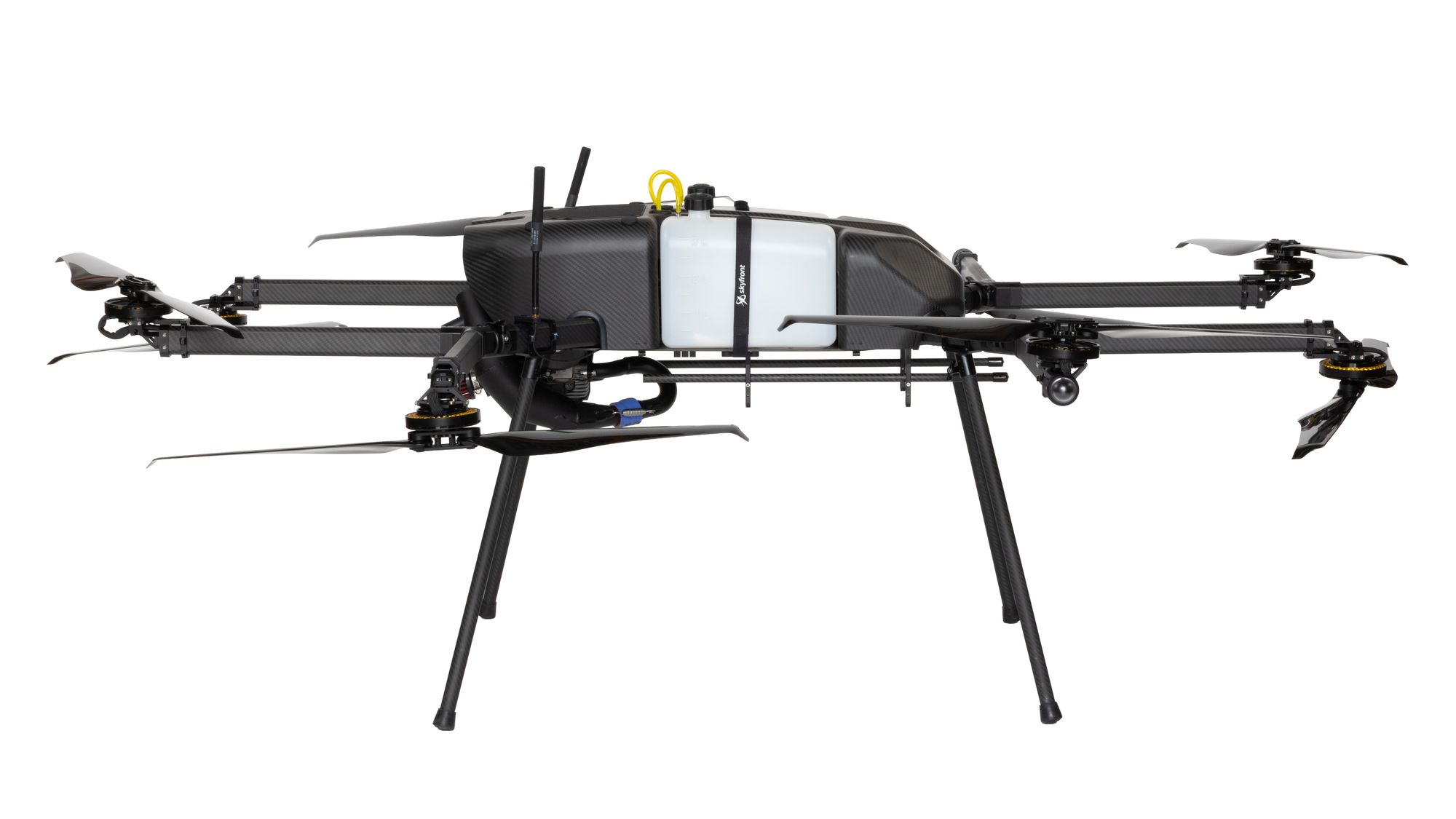

Skyfront Perimeter 8 Hybrid Electric Drone Side View

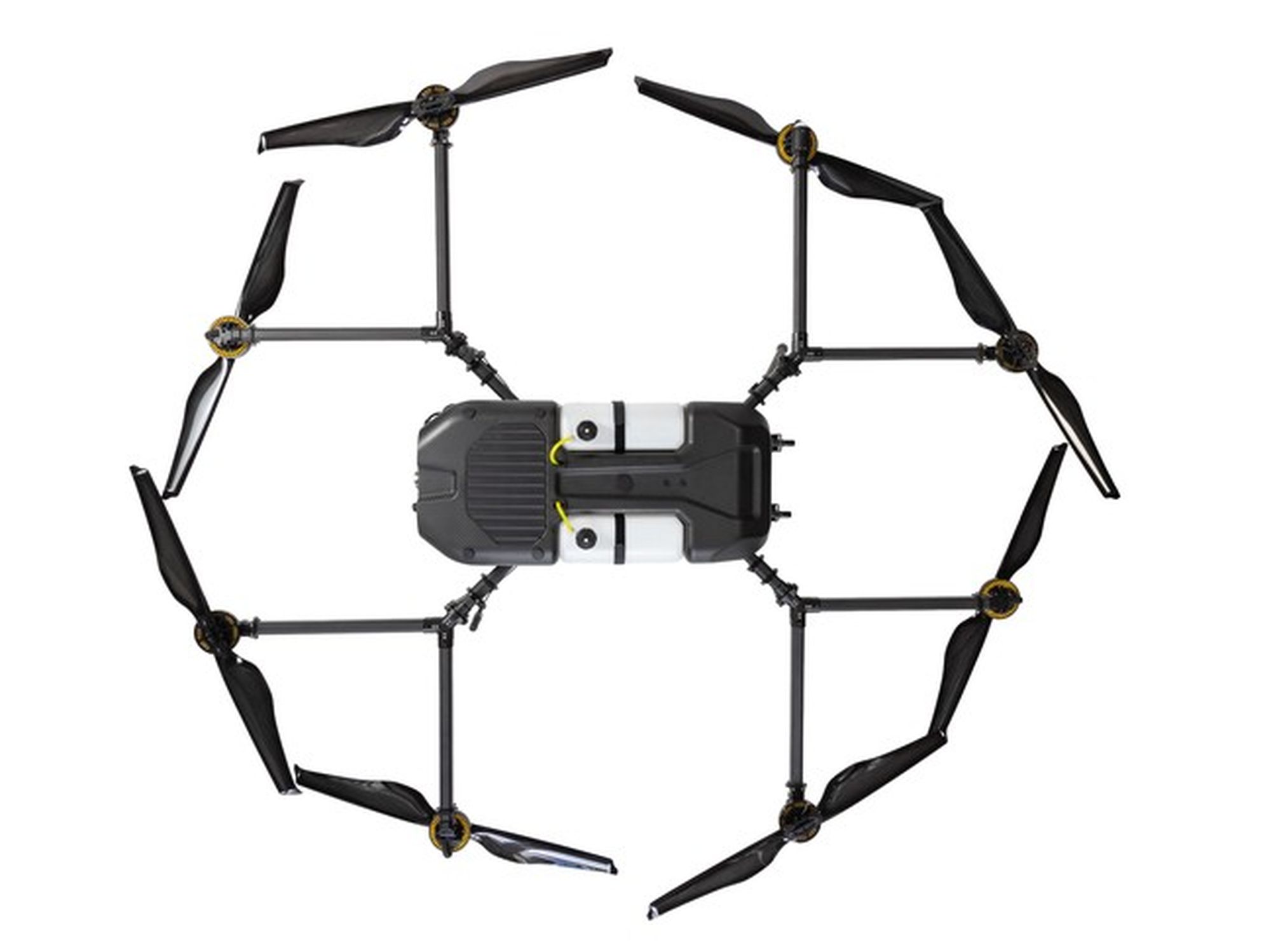

Skyfront Perimeter 8 Hybrid Electric Drone Top View

PATENT MARKINGS

  • Flight controller for a series-hybrid multirotor aircraft – March 25, 2015 – Provisional application No. 62/137 ,915
  • Flight controller with generator control – December 4, 2018 – 10, 144, 527
  • Flight controller with generator control – February 21, 2019 – 2019 / 0055029

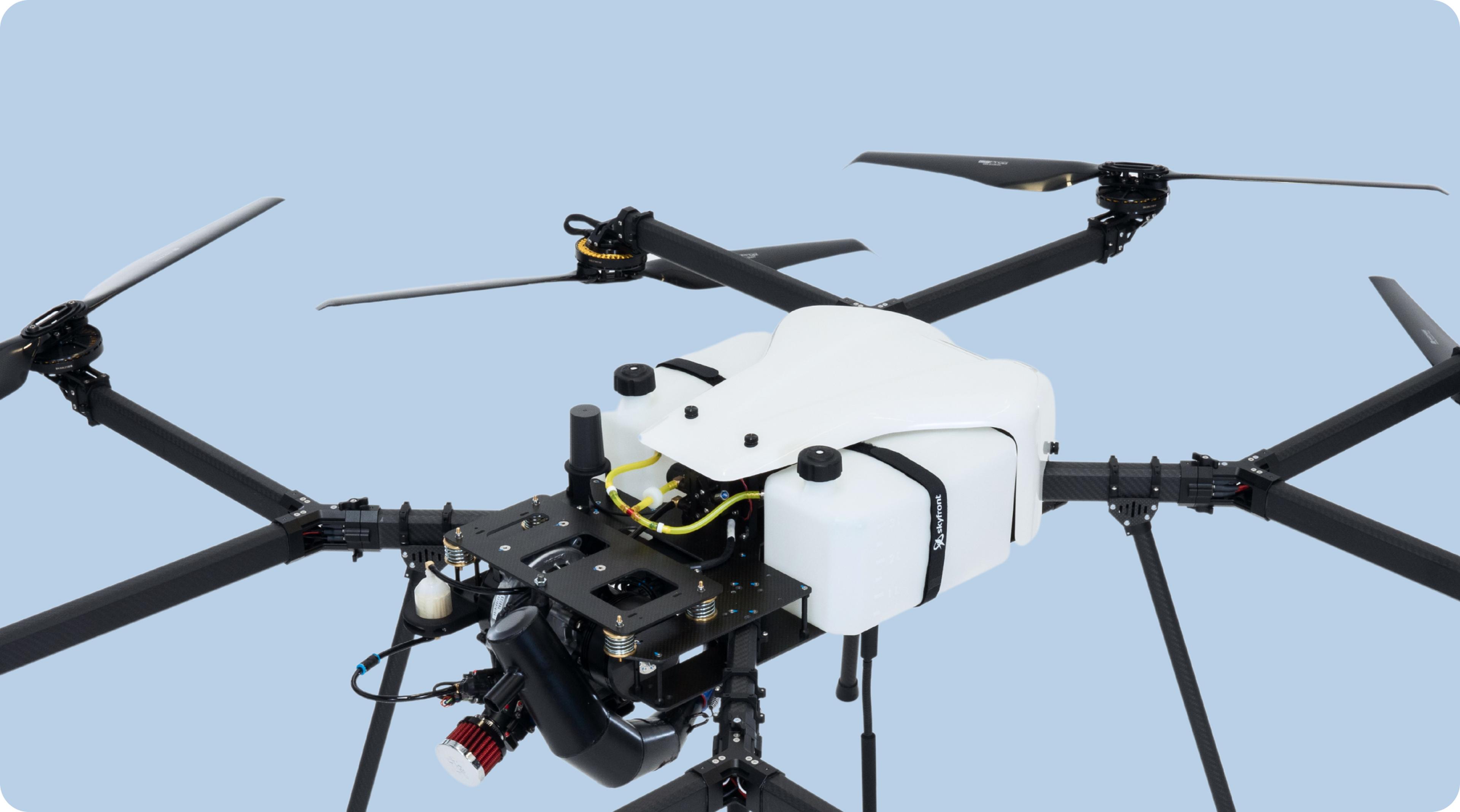

Highly Reliable and Easy to Operate Engine Electronic fuel injection eliminates the burden of tuning the UAV for different altitudes.
Extreme Endurance and Range Proprietary hybrid power system enables the Perimeter to fly for 6 hours or up to 130 miles.
Cold Temperature Operation The Perimeter’s hybrid power system can operate in freezing conditions as low as 15°F (-10°C).
Highly Efficient Power Conversion > 95% shaft-to-electric conversion efficiency.

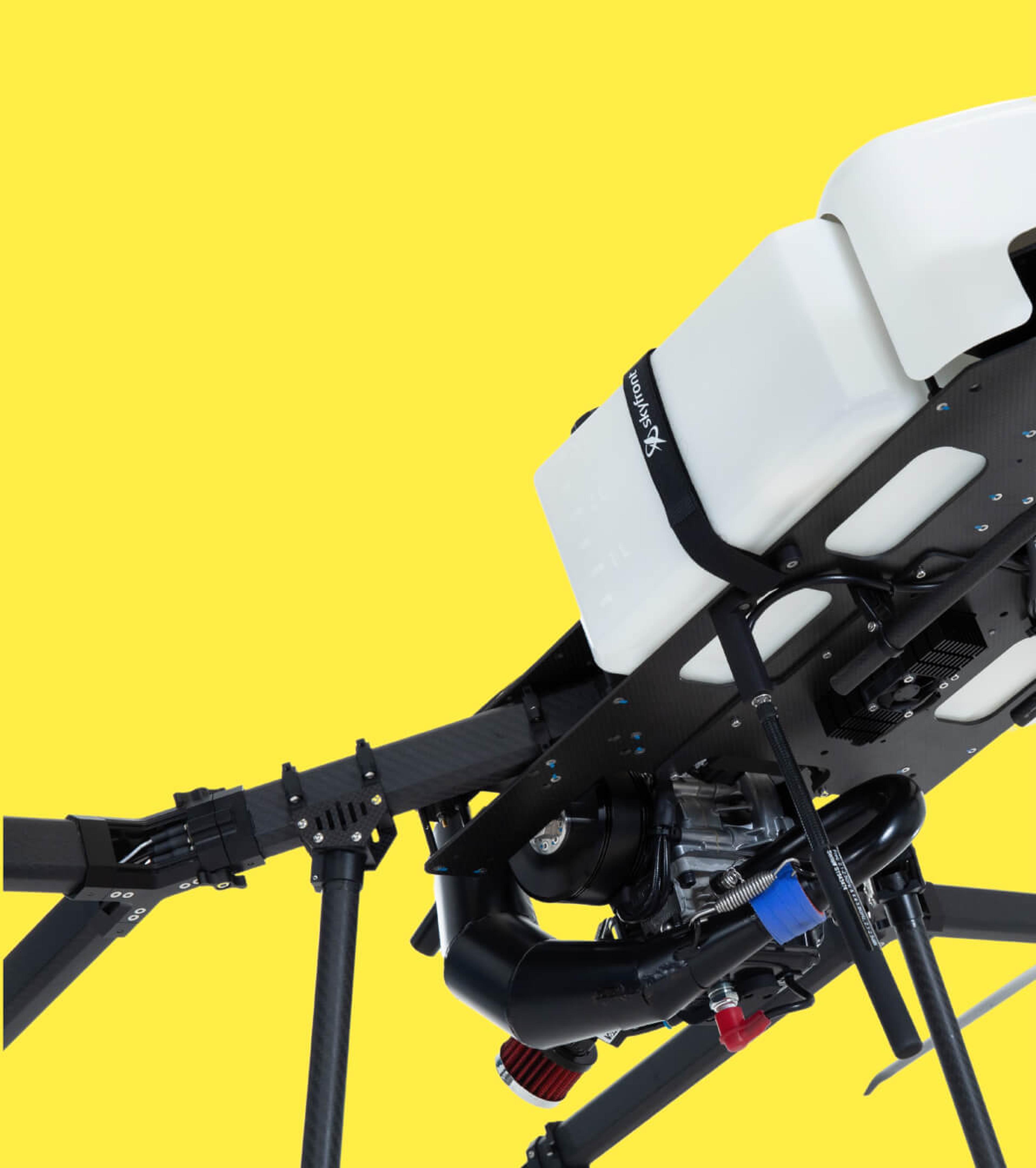

Aerodynamic Profile Engine and fuel system are integrated into the body of the vehicle, reducing aerodynamic drag
Optional GNSS Upgrades Professional GNSS module with multipath rejection and interference protection to reduce flyaways. No hobby-grade GNSS components.
Engine Vibration Dampening Vibrations from engine are dampened to preserve sensor data quality.
Skyfront Perimeter 8 Hybrid Electric Drone Package
Skyfront Perimeter 8 Hybrid Electric Drone Side View
Skyfront Perimeter 8 Hybrid Electric Drone Top View

PATENT MARKINGS

  • Flight controller for a series-hybrid multirotor aircraft – March 25, 2015 – Provisional application No. 62/137 ,915
  • Flight controller with generator control – December 4, 2018 – 10, 144, 527
  • Flight controller with generator control – February 21, 2019 – 2019 / 0055029
Total Power Redundancy Fully redundant power system. Can operate on battery power in case of engine failure.
Total Propeller Redundancy Vehicle can fly on 7 rotors in case of a single rotor failure.
Battery Protection G2K™ power system algorithms protect battery from charging
malfunctions.
Generator Monitoring Engine health constantly monitored. Operator alerted to anomalies.
High Reliability and Safety Fuel injected engine ensures the engine runs reliably. Smart power
management system protects battery from overcharging, extends
battery life, and ensures safe operation in case of an engine failure.
Engine Wear Protection Engine operated continuously at less than 70% of maximum power.
Competitors operate at full throttle.
Long Battery Reserve Longer battery-only reserve flight time than other competing hybrid
UAVs.
Made in the United States All software/firmware is based on open-source and compiled in
house, within the United States.
Encryption Optional AES256 (or 128) encryption for data links
Skyfront Perimeter 8 Hybrid Electric Drone Package
Skyfront Perimeter 8 Hybrid Electric Drone Side View
Skyfront Perimeter 8 Hybrid Electric Drone Top View

PATENT MARKINGS

  • Flight controller for a series-hybrid multirotor aircraft – March 25, 2015 – Provisional application No. 62/137 ,915
  • Flight controller with generator control – December 4, 2018 – 10, 144, 527
  • Flight controller with generator control – February 21, 2019 – 2019 / 0055029
